Labmaster Universal Model 1000A Accessories

INCLUDED ACCESSORIES


U308331 Carbide Tipped Probes: 1-40 inch (25-1016mm) ID, 0-40 inch (0-1016mm) OD
U306513 Horseshoe
U306519 Rotating Locating Post /Small (2)
U306496 Table Clamps (3)
U307538 Rotating Location Post /Large (2)
U307858 Slot Protector Set
U307741 Table Adapter (2)



SETUP/TRAINING (Included within United States; International-upon request)


SC-MC GageCal for Windows Training (4 hours/2 students)
SC-OP Additional Operator Training (8 hours/2 additional students)
SC-AP Application Training (if purchasing accessories for internal/external threads)
SC-FT

Post-sale Refresher Training (1-day / 2 students). Cost includes: All travel/living expenses. Training certificates are provided to satisfy ISO 17025 training requirements.





WARRANTY (1-year included)


WR-2Y Additional 1-Year Warranty



OPTIONAL INTERNAL ACCESSORIES


U306276 Internal Single Probe: 0.02, 0.079, 0.157, 0.236 inch balls (0.5, 2, 4, 6 mm balls)
U600130 Clamp for Small Rings (using Internal Single Probe)
U307458 Probe Bases, Adjustable (requires Internal Dual Probe Tips) (for easier alignment of small ID probes)
U600127 Probe Bases, Adjustable with 0.040-0.125 inch (1.00-3.18 mm) Internal Dual Probes (Note 1)
U306433 0.040-0.125 inch (1.00-3.18 mm) Internal Dual Probes (Note 1)
U306434 0.125-0.250 inch (3.18-6.35 mm) Internal Dual Probes (Note 1)
U306435 0.250-1.000 inch (6.35-25.4 mm) Internal Dual Probes (Note 1)
U306488 Probe Reference
U308634 Internal Thread Probe (11 pr screw-in tips, 5.5-48 TPI, 0.585-40” ID, (4.5-0.5 pitch, 15-1016 mm ID)) *for solid thread rings
U308633 Internal Thread Probe (11 posts, 5.5-40 TPI, 0.10-40” ID, (4.5-0.7 pitch, 2.5-1016 mm ID)) *for solid thread rings
U307262 Variable Reach ID/OD Probes with Replaceable Ruby Tips
307258 Spherical Carbide Tip, 0.125 inch [3.175 mm] diameter (used with U307262)
U307429 Variable Height ID/OD Probes (non Abbe compliant)
U308438 Ruby Tipped (ID/OD) Probes, 2.5" (63.5mm) height (non Abbe compliant)  NEW
U308343 High Accuracy Indicator & Stand
U308342    ID/OD Probes with Replaceable Tips, 2.125" (53.9mm) height (non Abbe compliant) NEW
U307472 ID Gear/Spline/Roller Bearing Raceway Probes
U307334 Axial Internal Clearance Kit (for roller bearings)
U307326 Radial Internal Clearance Kit (for roller bearings)
U308380 Internal Dual Probes 0.5-1.0 inch (12.7-25.4 mm) (larger vertical reach to 1.5 inch; better repeatability)
U600008 Micrometer Holder - vertical (for extra large micrometers)



OPTIONAL EXTERNAL ACCESSORIES


U308508 Digital Adjustable Force System
U307602 Precision Probe Positioner (replaces U306465)
D10543004          High Precision Adjuster (used with U307602)
U307630 Flat Probes 0.375 inch diameter (Note 1)   (6.5 mm & 8 mm upon request)
D10512010 Torque Wrench with bit (for flat probes)
308418 Bridge for Table Center Slot (for measuring small artifacts)  NEW
U306517 Ball Checker (to check parallelism on flat probes)
302558 Flatted Cylinder
U307631 Tapered Flat Probes (1 degree, 47 minutes) (Note 1)
306905 Tapered Master Plug
U302595 Magnetic Wire Holders
307775 V-Block (each) (for long square gage blocks and end standards)
U306512 Riser Disc Assembly (set of 3)
U306514 Backstop
U306515 Angle Block (please purchase #U306465; Probe Positioner
U306516 Dual Horseshoe Clamp
U306691 V-Block for Cylinders/Discs
U306784 Lead Fixture Assembly
U600108 Lead Probes (tilted styli)
U306722 Lead/*Gear Probes (includes 3.5 mm gear stylus & 6 pair lead stylus)
*additional gear stylus quoted separately
U307263 Blade Probes: 0.016 inch [0.4064 mm] Thick, Carbide (Note 1)
U307270 Small Diameter Flat Probes, 0.100 inch [2.54 mm] diameter (Note 1)
U307528 Thread Micrometer Standard Measuring Kit
U307610 Two-Point Bore Gage Kit
U307653 Gage Block Fixture (5-point positioner –rectangular blocks)
U307761 V-Clamp, Dial Indicator/Micrometer Head/Ball
U600142 Large Micrometer Head Fixture
U308567 Extended Range Supports (pair) (40” to 80” (1016-2032mm)) - for measuring long gage blocks, ball bars, end standards
U308656 Extension Probes, ID/OD (40” to 80” (1016-2032mm))
U308591 Extension Probes, ID/OD (80" to 120" (2032mm-3048mm))
U308699 Extended Range Supports (pair) (80" to 120" (2032mm-3048mm)) - for measuring long gage blocks, ball bars, end standards
U308338 Tapes & Rules Measuring Kit
309052 Rectangular Gage Block Holder (each) (for measuring 4 inch [100mm] and larger rectangular blocks)
U600020 Kit 7 inch Tall Flat Probes & Spacers



ADDITIONAL OPTIONAL ACCESSORIES

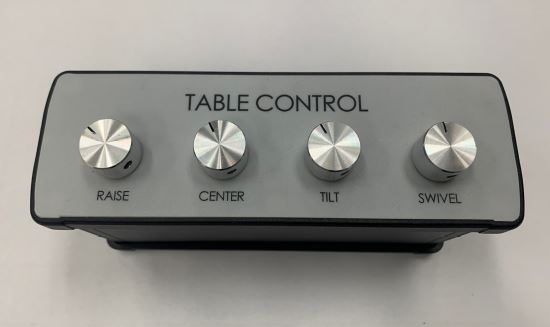

U600076 Table Control Box (knob control for table movement)  NEW
U308354 Extension Probes/Arms and Supports - kit (40 inch to 120 inch (1016-3048 mm))
U305754 Remote Control Foot Switch
306890 Common Bases for Customer Supplied Probes
U308712 2.5 inch [63.5 mm] Riser Bases for Probes
U306790 2 inch [50.8 mm] Riser Bases for Probes
U308353 Digital Adjustable Force System Kit (contains flat probes, force system, torque wrench, probe positioner) **
U308773 2.5 inch [63.5 mm] Riser Kit (contains risers for force system and probe positioner)
U307596 1 inch [25.4 mm] Riser Bases for Probes
U600026 Small ID Probe Kit (contains Internal Dual Probes: 0.04-0.125",0.125-0.25",0.25-1.0") **
D10559029 Table w/ Shelf; 30 inch x 84 inch (762 x 2133 mm), 3-Drawer, 2-Door, Blue
U308037 Granite Surface Plate (72 inch x 27 inch x 6 inch) [1728.8 x 685.8 x 152.4 mm] and Steel Support Stand
D10501027 LCD Stand (recommended if not purchasing table)
U307417 Color Printer with Cable
D10074004 Keyboard Stand
D10069007 Monitor, 20 inch [508 mm] LCD with adj. stand (in lieu of standard LCD monitor)
U308377 Air Compressor with Dryer (110v; call for 220v)
U308020 Master Cylinders: 0.125 inch & 0.75 inch [3.175 mm & 19.05 mm] (for measuring thread wires)
D10562015 Taper Ring Gage (1.5 inch; 3/4 inch TPF) [38.1 mm, 1/16 taper]
D10588001 Thread Wire Set - English (4-80 TPI) (34 sets in wood box)
D10588002 Thread Wire Set - Metric (0.2-10mm) (30 sets in wood box)
D10588003 Thread Wire Set - English (4-80 TPI) (34 sets in wood box) with long form certificate
D10588004 Thread Wire Set - Metric (0.2-10mm) (30 sets in wood box) with long form certificate
MS-GA4 Master Gages (10 Gage Blocks (Croblox), 5 Ring Gages (Steel))
U600177 Master Gages (10 Gage Blocks (Steel), 5 Ring Gages (Steel))
D10562013-C Master Ring Gages – (NIST traceable, steel, ISO 17025, sizes: 0.04, 0.125, 0.25, 1.0, 3.0 inch)
D10562016-C Master Ring Gages – (NIST traceable, steel, ISO 17025, sizes: 0.04, 0.125, 0.25, 1.0, 3.0, 5.0 inch)
D10562011-C Master Ring Gages - (NIST traceable, steel, ISO 17025, sizes: 1, 3, 6, 25, 75, 125 mm)
U308333 40 inch Master Ball Bar - Steel (1 Meter)
U308359 80 inch Master Ball Bar - Invar (2 Meters)
U600067 Part Temperature Compensation Kit
D10501046 Mylar Poncho (to minimize operator thermal radiation)
U308400  Quick Table Clamp (each)  NEW
U308358
L306955		 Internal Thread Probe (partial set, 5 posts, A-B-C-G-H)
Screw-in Tips for ID Threads (6 pair tips, A-F)
U308630 Screw-in Tips for ID Threads (5 pair tips, G-K)
D10555053 Screw-in Tip for ID Threads (each; need 2, L) for 4-5.5 TPI
D10555061 Screw-in Tip for ID Threads (each; need 2, M) for 4-5.5 TPI
U306785 Posts for ID Threads (6 posts, A-F)
U308629 Posts for ID Threads (5 posts, G-K)
D10554022 User's Manual
U308367 Spare Parts Kit (LMU-1000A)
D10575011 Shipping Container (LMU-1000A; does not include brackets)
D10575999 Crating for International Shipping
D10551003 Tsunami Compressed Air Filter w/ Regulator (please inquire if needed)
U308432 Environmental Weather Station/Data Logger

Note 1: If not purchased with instrument, requires on-site service (align, lap, or internal adjustment). P&W field service rates available upon request.

** Available only with instrument purchase.

PURCHASE INFORMATION
PURCHASE ORDER TO:     Pratt & Whitney Measurement Systems, Inc.
66 Douglas Street, Bloomfield, CT 06002-3619
Telephone: (860) 286-8181 Fax: (860) 286-7878
Fed ID#57-1156437; D&B#121250877; Cage Code#3EQQ7
ISO/IEC 17025:2017 accredited by A2LA
FOB: Bloomfield, CT  USA (Ex works for international shipments)
TERMS: Net-30 days upon approved credit
PRICES: Please call for latest pricing.  See P&W Terms & Conditions dated 09/18/2021; v2.2 QA-SO-1
